A vertical mouse can genuinely save your wrist. Whether it does anything for the burning knot at the top of your shoulder depends on a chain of joints that runs from your hand all the way up to your neck, and on how far up that chain the problem already sits.
Here is the honest, evidence-based guide to ergonomic mice and split keyboards: which device fixes which pain, where they quietly fail, and the point where changing the hardware is too little, too late.
The short version
- Ergonomic mice and keyboards are risk-reduction and comfort tools, not cures. They help most when matched to your exact pain pattern.
- Wrist and forearm pain from typing responds best to a split, tented keyboard; from mousing, to a vertical mouse or trackball.
- Shoulder and neck pain is usually driven by lateral reach, so a centered device (trackball or rollerbar) beats a vertical mouse, which does not remove the reach.
- A vertical mouse can even create new pain (thumb, elbow, shoulder) if the desk height and arm support are wrong.
- If your neck and shoulder joints are already stiff or sensitised, changing the mouse alone is often too little, too late, the whole chain has to be addressed.
Related reading
Do Ergonomic Peripherals Work?
Yes, within limits, and the limits are the important part. Split, tented keyboards and vertical or centered mice consistently improve wrist and forearm posture in lab studies: less ulnar deviation, less forearm twist, less wrist extension. For some people that translates into less pain over weeks. But the honest framing is risk reduction and comfort, not cure.
The clearest example of the boundary is carpal tunnel syndrome. A Cochrane review found insufficient evidence from controlled trials to say ergonomic keyboards treat CTS. They may reduce contributing strain, but they are not a medical treatment for a compressed nerve. So a good device can lower the load that feeds a problem; it does not, on its own, fix an established one. The other half of the outcome is always setup, breaks and load, and, once the neck is involved, the state of the neck itself.
The Kinetic Chain: Hand to Neck
To understand why a mouse can cause neck pain, follow the chain upward. A conventional flat mouse holds your forearm pronated (palm down) and sits off to the side, usually past a number pad. To reach and steer it, your shoulder abducts and rotates inward, the shoulder blade drifts forward, and the upper trapezius, the muscle that runs from the outside of your shoulder up into your neck and the base of your skull, fires at a low level to hold the arm out there, all day.
Reaching for a mouse to the side raised upper trapezius and deltoid activity; a centered device lowered it.
In a surface-EMG study (Harvey & Peper), using a mouse placed to the right of a standard keyboard, with the arm abducted, produced significantly higher activity in the upper trapezius, posterior deltoid and rhomboids than using a trackball centred below the keyboard. That is the chain in one measurement: the further the hand reaches out, the harder the shoulder and neck muscles work. Chronic low-level overactivity in the upper trapezius is exactly the pattern behind that end-of-day ache at the top of the shoulder and into the neck.
So the plain-language summary holds: a flat, reached-for mouse encourages internal rotation, which drags the shoulder forward, which loads the upper trapezius, which anchors to the neck. Fix the reach and you unload the chain. Ignore it, and no amount of wrist-angle tweaking reaches the real problem.
Match the Device to the Pain
This is where most buying advice goes wrong: it recommends a device, not a fix for your pattern. The geometry that helps a wrist is different from the geometry that helps a shoulder.
Which device features fit which pain, and the catch for each.
| Your main symptom | What tends to help | Why | The catch |
|---|---|---|---|
| Wrist/forearm ache from typing | Split keyboard, tented 10 to 20 degrees, flat or slight negative tilt | Cuts ulnar deviation and forearm pronation, lowers wrist-extensor load | Needs weeks of consistent use; will not cure established CTS alone |
| Wrist pain from mousing | Vertical mouse (about 30 to 60 degrees) or a trackball | Takes the twist out of the forearm, lowers extensor activity | Does little if the pain is from reach, or if the wrist over-extends |
| Shoulder/neck pain from mousing | Centred rollerbar or midline trackball; compact keyboard to pull the mouse inward | Removes lateral reach, keeps the shoulder neutral, unloads the upper trap | A vertical mouse alone usually will not fix reach-driven shoulder pain |
| Numbness, night pain, or weakness | Neutral setup and breaks, plus medical evaluation | Reduces contributing strain while the cause is assessed | Hardware is support, not treatment; persistent nerve symptoms need a clinician |
The single most useful takeaway: if your pain is at the top of the shoulder and into the neck, the answer is usually a centred device, not just a differently-shaped mouse. The problem is how far you reach, and a vertical mouse still lives out to the side.

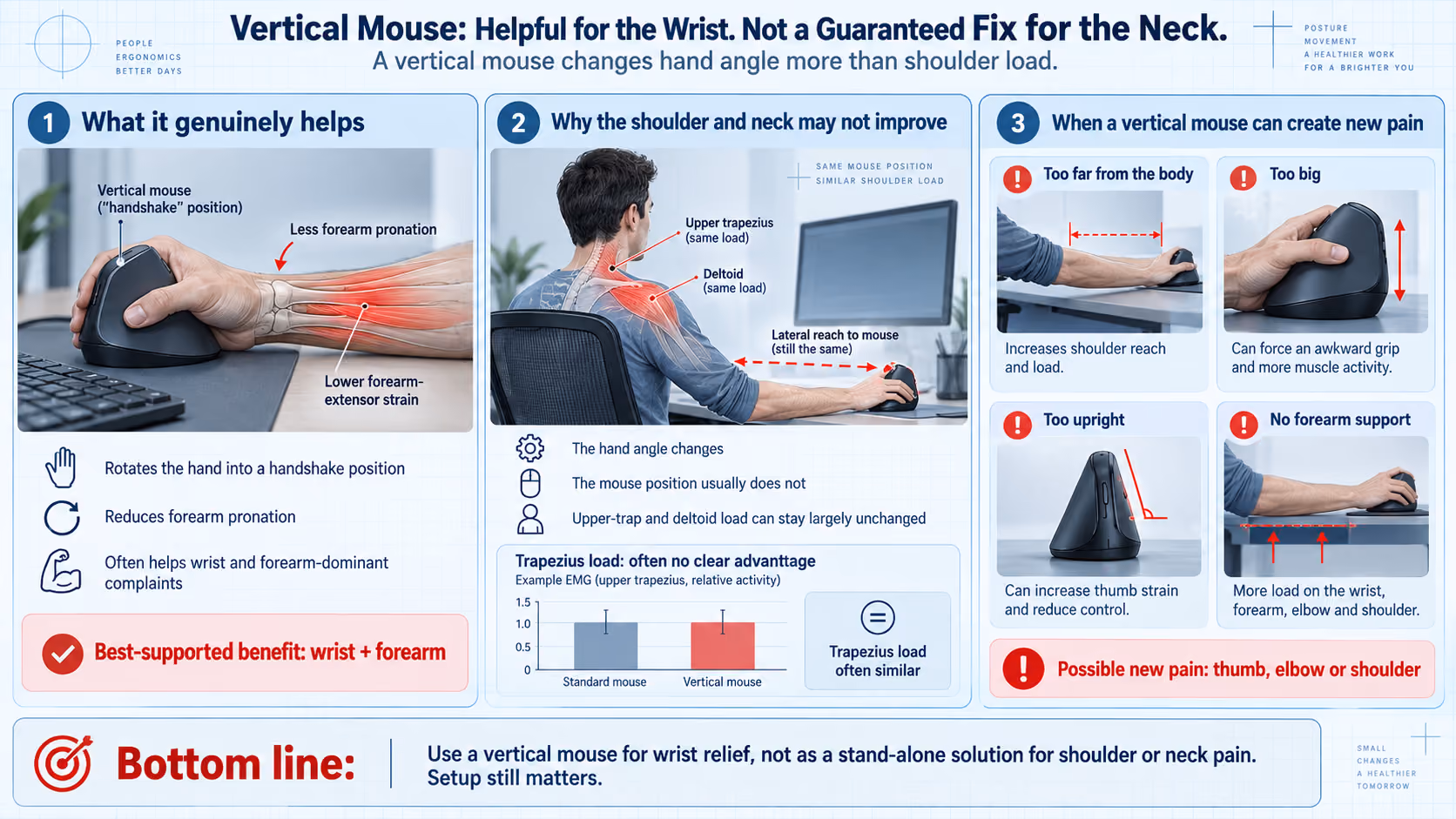

Vertical Mice: Where They Help, and Where They Don't
Vertical mice rotate the hand into a “handshake” position, which reduces forearm pronation and often lowers forearm-extensor muscle activity. For wrist and forearm-dominant complaints, that is a real, well-supported benefit.
For the shoulder and neck, the evidence is weaker, and this is where marketing overreaches. A vertical mouse changes the angle of your hand, but it does not change where the mouse sits, so the lateral reach, and the upper-trap and deltoid load that comes with it, is largely unchanged. Some EMG studies find no clear advantage of vertical over conventional mice for trapezius load, and the operation force can even be higher. And a vertical mouse set up badly, too big, too upright, or used with no forearm support, can create new pain in the thumb, elbow or shoulder.
The honest line
A vertical mouse is a good fix for forearm twist and wrist strain. If your main problem is neck and shoulder, a centred trackball or rollerbar that removes the reach will usually do more, and some people use a vertical mouse for the wrist and a trackball for shoulder-heavy days.
Split Keyboards: What They Actually Fix
A split, tented keyboard lets each hand sit at shoulder width with the forearms less pronated and the wrists less deviated. For typing-driven wrist and forearm strain, users often feel a real difference within days to weeks, and some report shoulder relief too, because the arms sit wider and the chest opens instead of hunching inward.
Two honest caveats. First, it is a habit change: a heavily split layout takes an adjustment period, and going “maximum ergonomic” overnight, halves too wide or too high, can create new shoulder or elbow strain and lock you into a static posture. Start with small angles and short sessions. Second, like every device here, a keyboard fixes the wrist and forearm end of the chain; it does not, by itself, resolve a neck that is already the problem.
What Real Users Report
The forums are remarkably consistent, and they map almost exactly onto the pain patterns above. Presented as anecdote, not evidence:
Recurring patterns from users (Reddit and elsewhere)
- Wrist-dominant pain: a split keyboard plus a moderate-angle vertical mouse often eased pain within days to weeks, especially with neutral desk height and forearm support.
- Shoulder/neck-dominant pain: many say a vertical mouse alone did not help; switching to a centred rollerbar or trackball brought the biggest relief, one described “complete relief in my neck, shoulders and wrists.”
- When it backfired: a consistent minority got new thumb, elbow or shoulder pain after a vertical mouse, usually traced to desk height, chair height or missing arm support, not the mouse itself.
- It is never just the device: the most upvoted advice is always the same, hardware helps, but breaks, strengthening, workstation setup and, for persistent symptoms, a professional assessment are what make relief last.
Setup Matters as Much as the Device
A perfect device on a bad desk still hurts. In fact, mouse position relative to your body affects shoulder and neck load as much as, or more than, mouse shape. Fix these first, or alongside any new hardware:
- Mouse right next to the keyboardSame height, elbow near your side. This is the highest-value change for shoulder and neck load, and it is free.
- Shrink the reachA compact or tenkeyless keyboard removes the number pad that pushes the mouse out to the right.
- Elbows near 90 degrees, forearms supportedSo the weight is carried at the elbow, not held out by the shoulder. Set desk or chair height to make this natural.
- Keyboard flat or slightly negativeAt or just below elbow height, so the wrists are not bent up.
- Breaks and varietyNo device offsets 8 to 12 hours of continuous input. Short, frequent breaks and task variation do real work.
For the full desk, chair and screen numbers, our workstation setup guide has them; the point here is that a new mouse changes one link in a chain that is only as good as its setup.
When Hardware Is Too Little, Too Late
Here is the clinical reality the buying guides skip. All of the above assumes the joints and muscles up the chain still move well. If you already have restricted neck or shoulder mobility, a shoulder blade that is not moving properly, or tissues that have become sensitised over months of overload, the upstream restriction keeps the upper trapezius overloaded no matter what angle your hand is at.
A better mouse changes your hand. It does not change a neck that has already stiffened around the problem.
In that situation, swapping the mouse is genuinely too little, too late on its own. The bottleneck is no longer the device; it is the whole chain, how far you reach, how the shoulder blade moves, and how mobile your neck and upper back are. Lasting relief comes from combining a sensible device with setup changes, movement and targeted work on the restricted links, not from the peripheral alone.
Two symptom patterns deserve a clinician rather than a checkout page. Nerve symptoms into the hand, numbness, tingling or weakness in specific fingers, can come from the wrist (carpal tunnel), from the neck (cervical radiculopathy), or from the space around the collarbone (thoracic outlet syndrome), and telling them apart needs an examination, not a gadget. And a stubborn, one-sided upper-trap and neck ache that no device settles is worth assessing at the neck, where the chain ends.
How assessment works here
Because the approach is structural, an assessment with Dr Kalla is based on a standing X-ray of your neck, not on how it looks or feels: bring your own films if they are under six months old, or you will be referred for one first. Radiating arm pain and tingling are assessed here; signs of possible nerve or spinal-cord damage, like losing the ability to tell a key from a coin by touch, are referred to a spine surgeon. Chiropractic is non-MOH and not Medisave-claimable. Seek urgent medical care for weakness, spreading numbness, unsteadiness, or pain after an injury.
New mouse, new keyboard, same shoulder and neck ache? That usually means the problem has moved up the chain. A standing-X-ray assessment shows whether the neck is the bottleneck, and you can see how other Singapore patients progressed first.
Book a pain assessment →A fair place to start: fix the mouse position and breaks (free), then choose a device for your actual pattern, vertical or split for the wrist, centred for the shoulder. If the top of the shoulder and the neck keep aching regardless, that is the signal it was never really the mouse. Related reading: upper back pain and myofascial trigger points.
Frequently Asked Questions
Does an ergonomic mouse help shoulder pain?
It depends on the type. Shoulder and neck pain from mousing is usually driven by reaching out to the side, so a centred device, a rollerbar or a midline trackball, that removes the reach tends to help most. A vertical mouse improves forearm and wrist posture but does not remove the lateral reach, so it often does little for reach-driven shoulder pain. Bringing the mouse next to the keyboard helps regardless of shape.
Can a split keyboard help tech neck?
Indirectly, and only partly. A split, tented keyboard lets the arms sit wider and the chest open, which some users find eases upper-back and shoulder tension as well as wrist strain. But it works on the wrist-and-forearm end of the chain. If your tech neck is driven by screen height, forward head posture or a stiff neck, a keyboard alone will not fix it, and pairing it with screen and posture changes matters more.
Is a vertical mouse or a trackball better for neck and shoulder pain?
For neck and shoulder pain specifically, a centred trackball usually wins. A vertical mouse mainly helps the forearm and wrist; it still sits out to the side, so the shoulder still reaches. A trackball or rollerbar placed in front of you removes that reach and keeps the shoulder neutral, which is what unloads the upper trapezius. Some people use a vertical mouse for the wrist and a trackball on shoulder-heavy days.
Will an ergonomic keyboard or mouse cure carpal tunnel syndrome?
No. They are support, not treatment. A Cochrane review found insufficient evidence that ergonomic keyboards treat carpal tunnel syndrome. A neutral setup can reduce the strain that contributes to symptoms, but persistent numbness, night pain or weakness in the hand needs a medical evaluation, because it may be a compressed nerve at the wrist or the neck, not a hardware problem.
Why did my shoulder start hurting after switching to a vertical mouse?
Usually setup, not the mouse itself. If the desk is too high, the chair too low, or there is no forearm support, your shoulder works to hold the arm up, and a taller vertical mouse can make that worse. A mouse that is too big or too upright can also overload the thumb or elbow. Lower the angle, support the forearm, correct desk and chair height, and if the shoulder still hurts, the reach or the neck is the real issue.
My mouse hand goes numb. Is it my wrist or my neck?
It can be either, so it should be assessed rather than assumed. Numbness or tingling in the hand can come from the wrist (carpal tunnel), the neck (a pinched nerve root), or compression around the collarbone (thoracic outlet syndrome). A wrist gadget only addresses one of those. Persistent hand numbness, night symptoms or weakness deserve an examination that checks the neck and shoulder, not just the wrist.
Fixed the hardware. The neck still aches.
If a new mouse and keyboard have not settled a stubborn shoulder and neck, a standing-X-ray assessment can show whether the top of the chain, your neck, is the real bottleneck.
Related reading
References
- Harvey R, Peper E. Surface electromyography and mouse use position. Ergonomics. 1997;40(8):781-789. PMID 9336102. PubMed
- O’Connor D, Page MJ, Marshall SC, Massy-Westropp N. Ergonomic positioning or equipment for treating carpal tunnel syndrome. Cochrane Database Syst Rev. 2012;1:CD009600. PMID 22259003. PubMed
- The effects of standing working posture on operation force and upper limb muscle activation when using different pointing devices (conventional mouse, vertical mouse, trackball). Int J Environ Res Public Health. 2022;19(16):10217. doi:10.3390/ijerph191610217. PMC
- Blanpied PR, Gross AR, Elliott JM, et al. Neck Pain: Revision 2017. Clinical Practice Guidelines. J Orthop Sports Phys Ther. 2017;47(7):A1-A83. PMID 28666405. PubMed
